GJYXFCH/GJYXCH
皮线光缆系列-金属/非金属自承式皮线光缆
Indoor cable series
产品描述

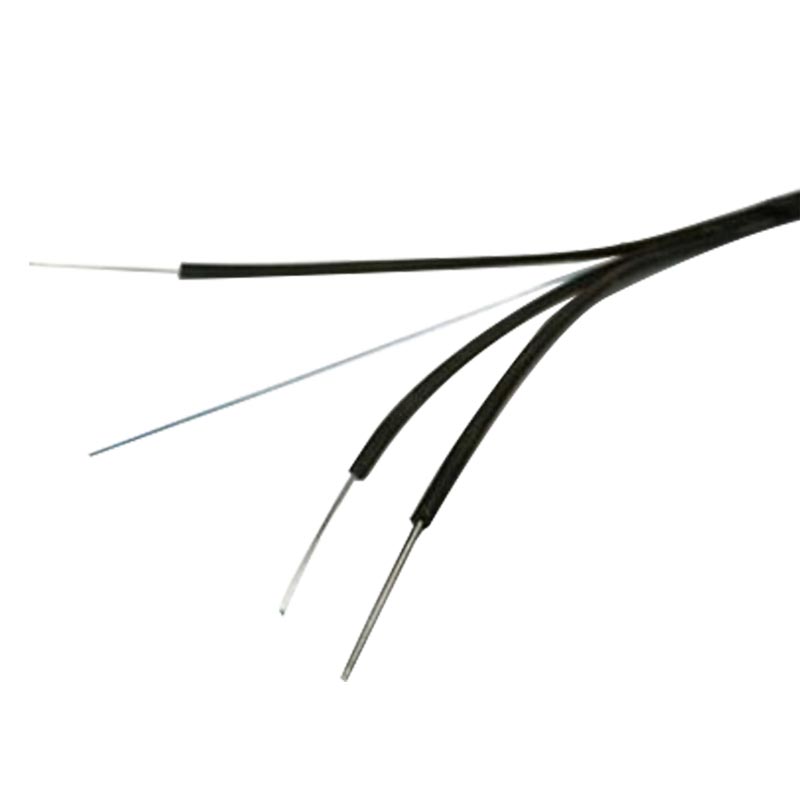

GJYXFCH/GJYXCH自承式蝶形引入光缆是在GJXFH/GJXH光缆外侧再附加一根增强元件（钢丝或者钢丝绳）。
The GJYXFCH/GJYXCH self supporting butterfly is introduced to the outside of the GJXFH/GJXH cable to attach an additional element (steel wire or wire rope).
产品特点
独特的凹槽设计，易剥离，方便接续，简化安装和维护，抗拉力更强。
适用于户外架空引入到室内。
低烟无卤阻燃护套，环保，安全。
Unique groove design, easy stripping, easy connection, simplify the installation and maintenance, and more resistant to tension.
Suitable for outdoor overhead introduction to indoor.
Low smoke halogen free flame retardant sheath, environmental protection, safety.
产品标准
满足YD/T1258.4-2005, IEC 60794-2-20/21标准。
Meet IEC, 60794-2-20/21 YD/T1258.4-2005 standard.
交货长度
推荐长度:2000米;可按客户要求提供其他长度。
Recommended length: 2000 m; other length can be provided according to customer's request.
技术参数
|
|
|
光缆尺寸
|
光缆重量
|
|
允许拉伸力
|
允许压扁力
|
最小弯曲半径
|
|
|
光缆型号
|
|
长期/短期
|
长期/短期
|
静态/动态
|
|
|
mm
|
Kg/km
|
|
|
|
|
|
N
|
N/100mm
|
mm
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
GJYXFCH-1B6a2
|
(2.0±0.1)×(5.2±0.3)
|
18.9
|
|
300/600
|
1000/2200
|
15/30
|
|
|
|
|
|
|
|
|
|
|
|
GJYXFCH-2B6a2
|
(2.0±0.1)×(5.2±0.3)
|
18.9
|
|
300/600
|
1000/2200
|
15/30
|
|
|
|
|
|
|
|
|
|
|
|
GJYXCH-1B6a2
|
(2.0±0.1)×(5.2±0.3)
|
21
|
|
300/600
|
1000/2200
|
15/30
|
|
|
|
|
|
|
|
|
|
|
|
GJYXCH-2B6a2
|
(2.0±0.1)×(5.2±0.3)
|
21
|
|
300/600
|
1000/2200
|
15/30
|
|
|
|
|
|
|
|
|
|
|
|
储存、使用温度℃
|
|
|
-20~+60
|
|
|
|
|
|
|
|
|
|
|
|
