.GJFJV
室内光缆系列-多芯室内紧包光缆
Indoor optical cable series
产品描述

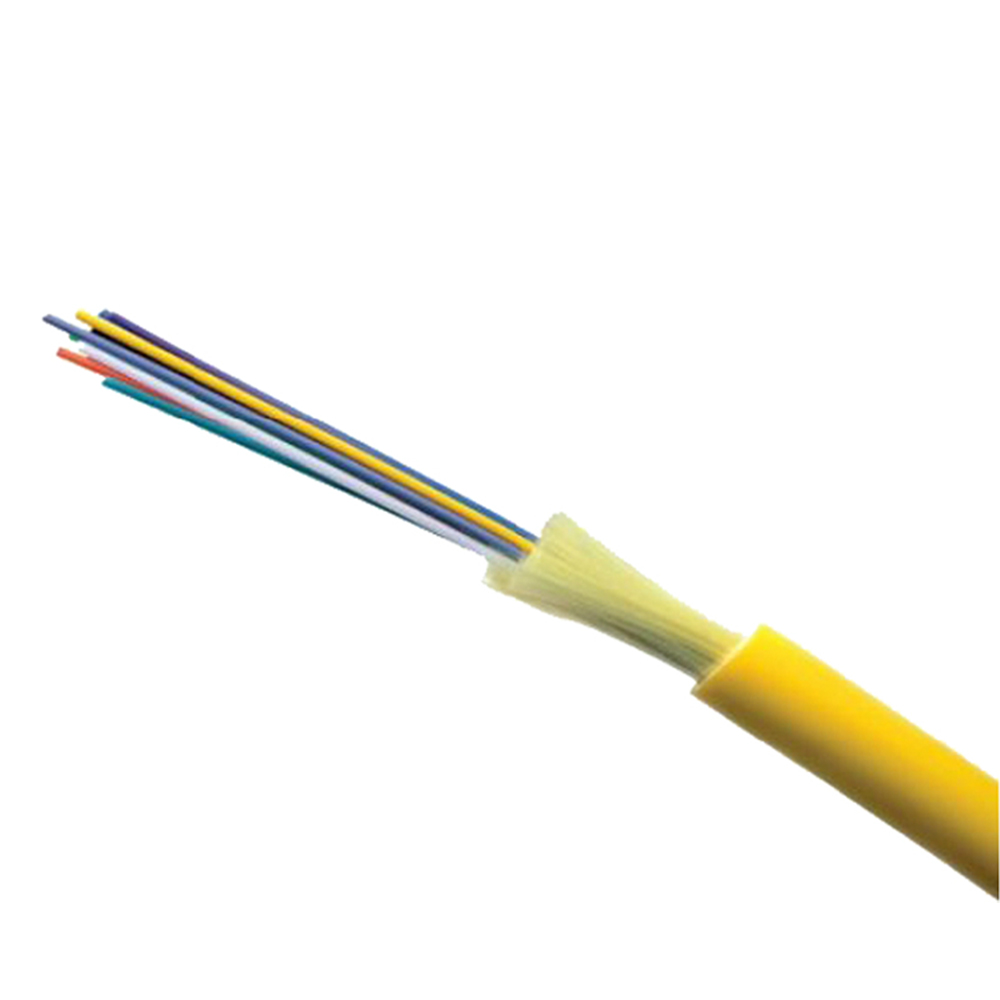

多芯束状光缆使用多根900μm紧套光纤作为传输介质,外覆芳纶纱作为加强元件,最外挤制一层聚氯乙烯(PVC)护套而成。也可根据客户需求提供LSZH、TPU等材质的护套。
Cores bunched cable using a plurality of 900 m tight tube optical fiber as the transmission medium, coated aramid yarn as the reinforcing elements and the extrusion with a layer of polyvinyl chloride (PVC) sheath and. Can also be based on customer needs to provide LSZH, TPU and other materials of the sheath.
产品应用
多芯光纤活动连接器。
室内综合布线。
Multi core optical fiber active connector.
Indoor integrated wiring.
产品标准
满足YD/T1258.4-2005, IEC 60794-2-20/21标准。
Meet IEC, 60794-2-20/21 YD/T1258.4-2005 standard.
交货长度
推荐长度:2000米;可按客户要求提供其他长度。
Recommended length: 2000 m; other length can be provided according to customer's request.
技术参数
|
|
光缆尺寸
|
光缆重量
|
允许拉伸力
|
允许压扁力
|
弯曲半径
|
|
光缆型号
|
长期/短期
|
长期/短期
|
静态/动态
|
|
mm
|
Kg/km
|
|
|
|
|
N
|
N/100mm
|
mm
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
GJFJV-4Xn
|
5.2±0.4
|
30
|
|
600/1200
|
1000/2200
|
65/130
|
|
|
|
|
|
|
|
|
|
GJFJV-6Xn
|
5.5±0.4
|
35
|
|
600/1200
|
1000/2200
|
65/130
|
|
|
|
|
|
|
|
|
|
GJFJV-8Xn
|
6.4±0.4
|
36
|
|
600/1200
|
1000/2200
|
65/430
|
|
|
|
|
|
|
|
|
|
储存、使用温度℃
|
|
|
-20~+60
|
|
|
